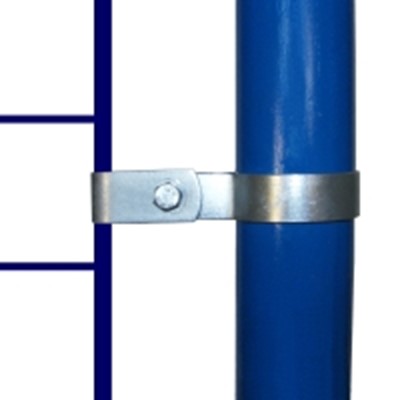

170 – Single Sided Mesh Panel Clip

A single mesh panel clip. Typically used for retaining weld mesh panels into guardrail. To correctly retain the weld mesh panel in place using this clip, the mesh should be framed with a 8mm bar. For attaching mesh panels to one side of tube.

For double-sided clips, please refer to type 171. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.
Please note that bolts are BZP coated.

Designed to suit 8mm rod.
